NuvaSpan
Suspended cleaning system for fixed PV installations.
A project-engineered bridge-type cleaning solution for sites where a fixed structure is more suitable than portable robot deployment.
- Suspended
- System type
- Fixed install
- Deployment
- Project-engineered
- Setup
- Low intervention
- Operation
NuvaSpan

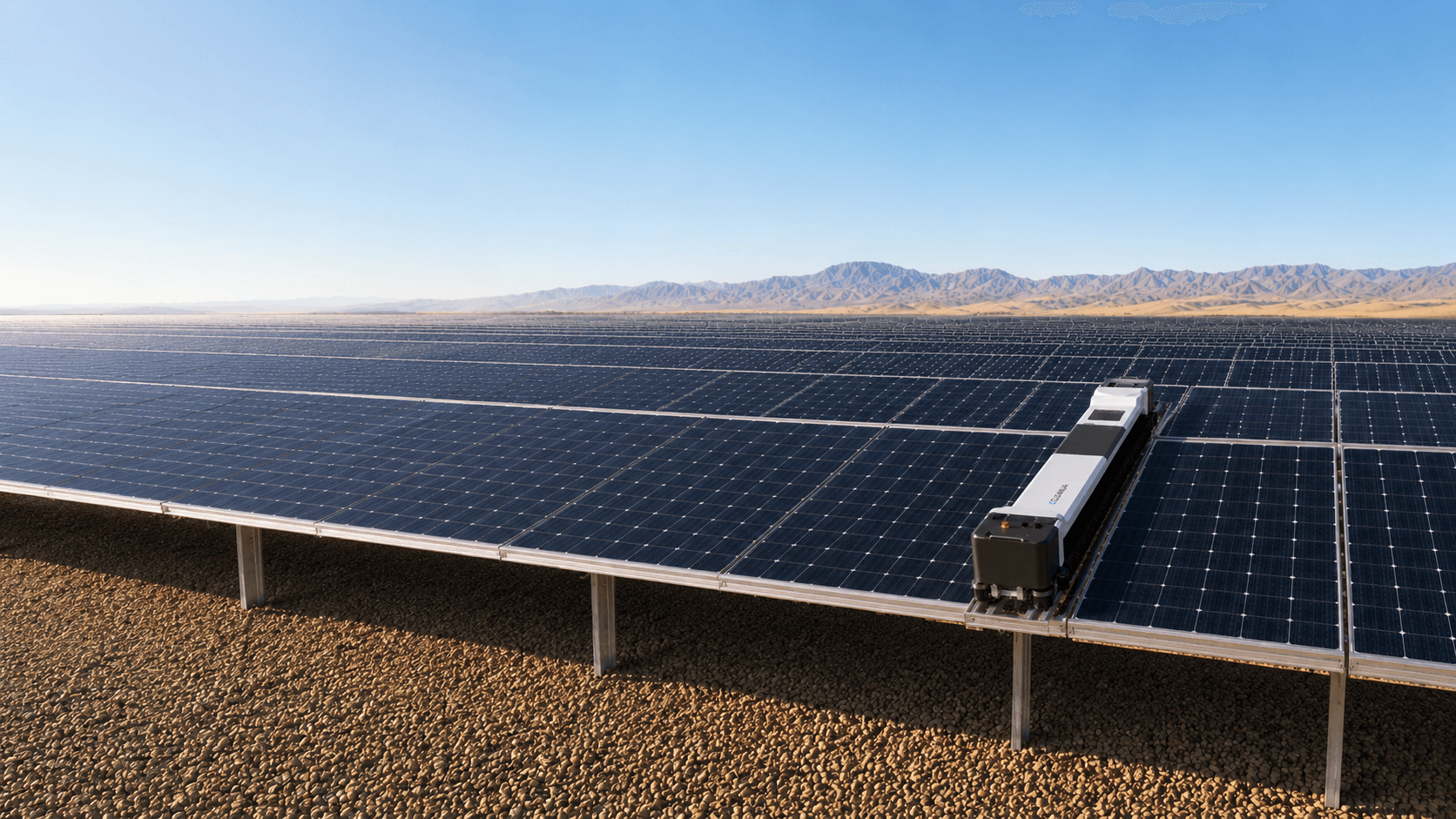

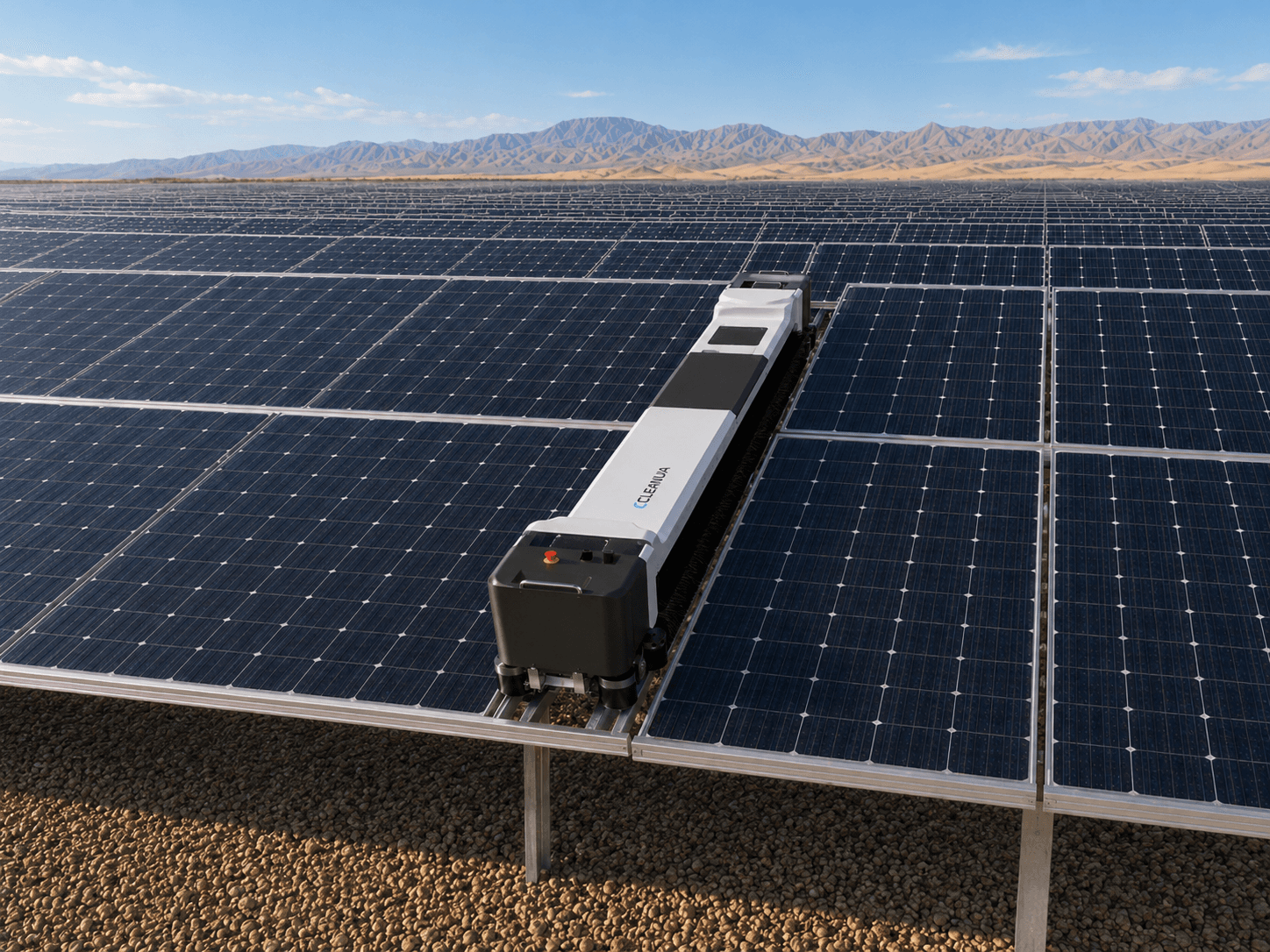

NuvaSpan system view
A fixed cleaning concept for project-engineered PV structures.
Project media can be added as site footage becomes available.
When to choose NuvaSpan
- Fixed PV structures
- Repeated cleaning along a defined span
- Sites where portable robots are less suitable
- Project-based installations
- Specific mounting or structural conditions
A fixed-structure cleaning system
Fixed or semi-fixed cleaning path
Span / bridge-type movement
Site-specific engineering
Cleaning module
Service access
What we need from you
NuvaSpan is engineered to the site. To scope a system, share:
- Site layout
- Module dimensions
- Mounting structure
- Row length
- Access constraints
- Cleaning target
- Local climate / soiling type
Specifications
System & deployment
- System type
- Suspended / bridge-type
- Installation type
- Fixed installation
- Cleaning mode
- Dry (structure-dependent)
- Automation level
- Low routine intervention
- Operator requirement
- Low routine intervention
- Best fit
- Fixed arrays / specific structures
- Project requirements
- Project-specific
- Configuration
- Configuration dependent
- Warranty / service
- 12 months / on request
Full specifications
- Dimensions
- 4,923 × 540 × 562 mm
- Weight
- 48–80 kg
- Travel speed
- 18 m/min
- Cleaning capacity
- 4,000 m²/h
- Climbing
- 25°
- Module tilt
- 45°
- Obstacle clearance
- 50 mm step / offset
- Cleaning method
- Water-free dry
- Architecture
- Suspended / bridge
- Power
- Solar self-powered
- Runtime per charge
- 2 h
- Warranty
- 12 months
NuvaSpan is project-engineered; several values are configuration- or project-specific. Datasheet values are shown where available.
